Introduction of engine crankcase breather hose：

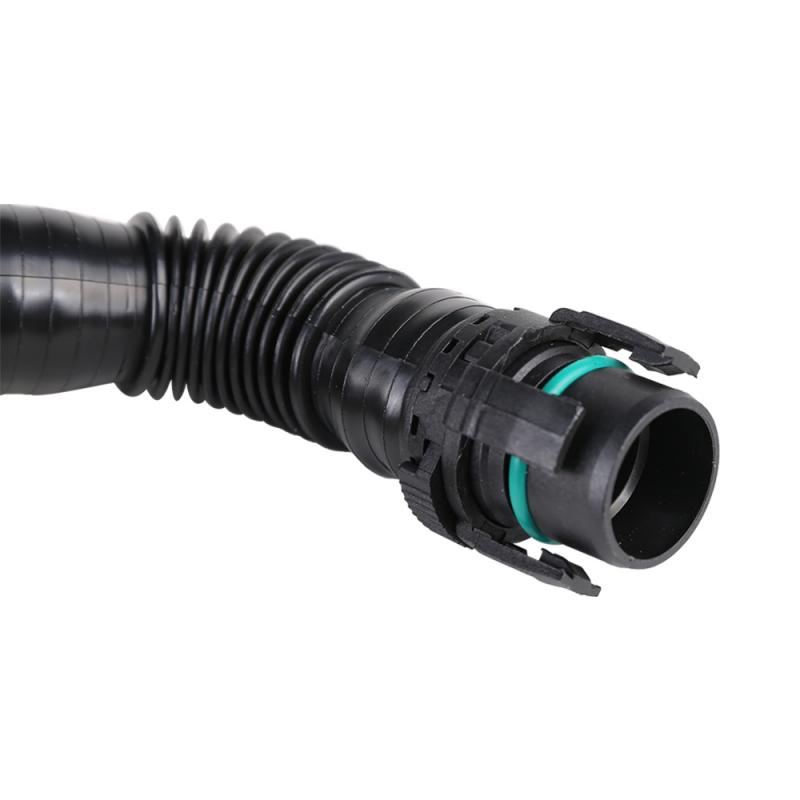

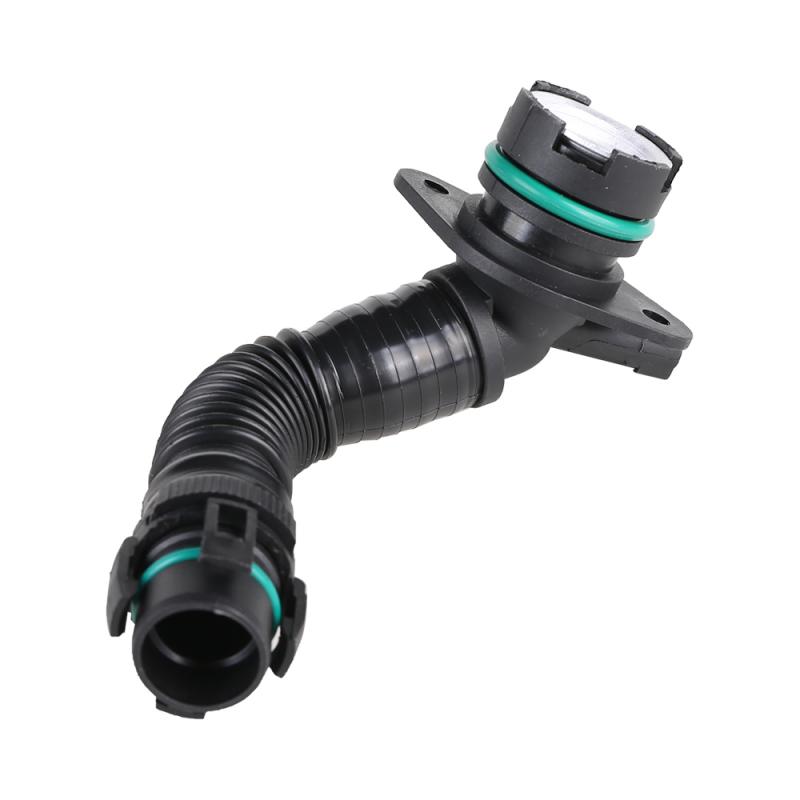

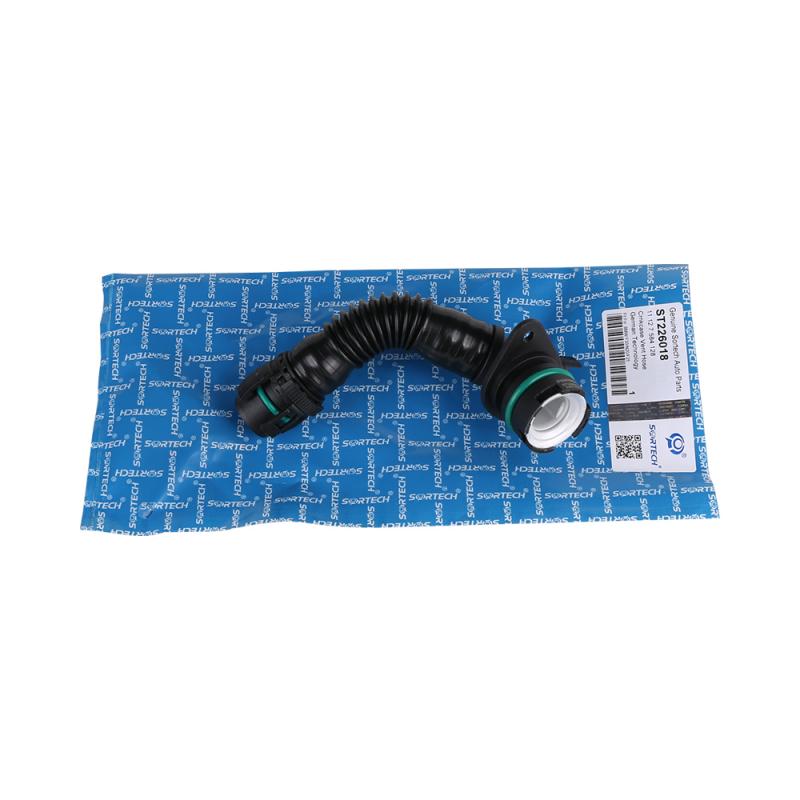

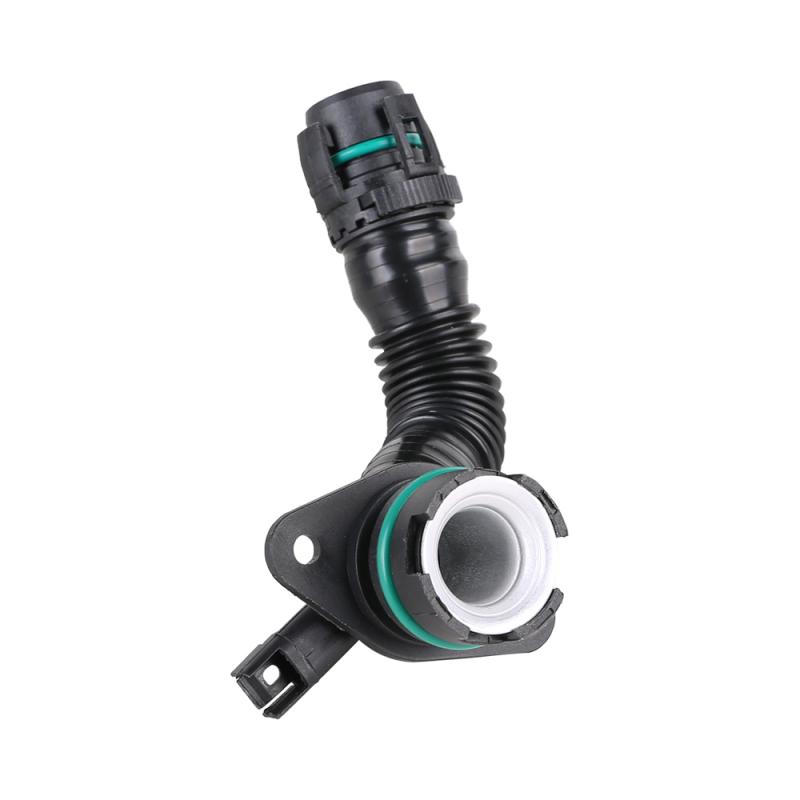

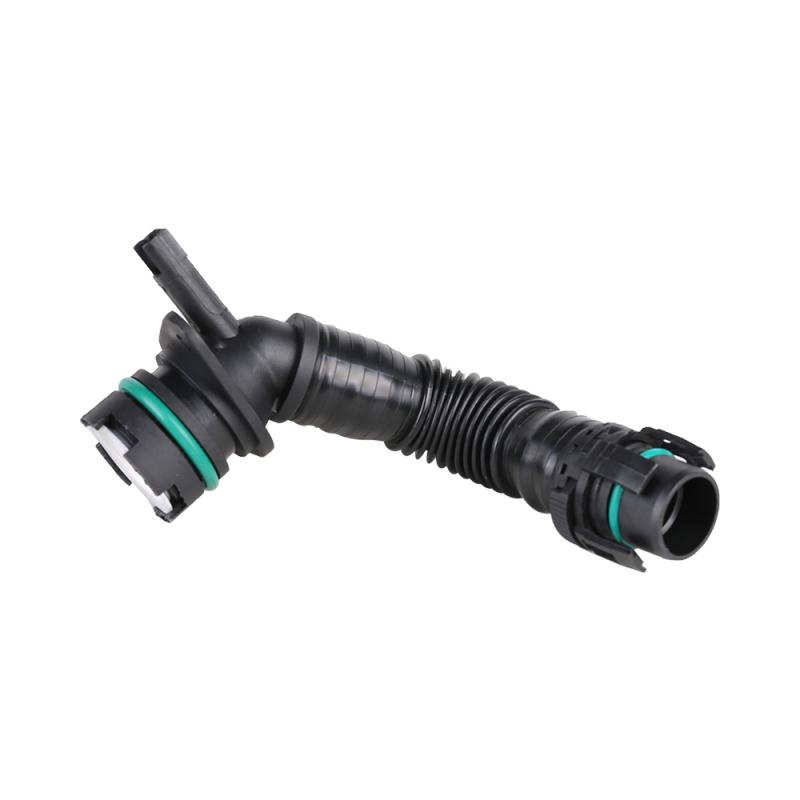

Engine crankcase breather hose is a key component in the ventilation system of the crankcase of an automobile engine. Engine crankcase breather hose is responsible for directing the gases generated in the crankcase (such as unburned fuel vapor and exhaust gas) to the intake manifold for secondary combustion. This helps reduce emissions, prevent excessive crankcase pressure and oil leakage. If the hose is damaged (such as broken or clogged), crank vent hose may cause the engine to idle unsteadily, increase oil consumption, or the failure light will light up crank vent hose.
The advantages of our production of crankcase vent hose for BMW：
1. In the manufacturing process of crankcase vent hose for BMW, we crank vent hose generally use fluorine rubber (FKM) or high-performance silicone material, which can withstand extreme temperature ranges from -40℃ to 200℃, so our crankcase vent hose for BMW material is much better than ordinary rubber tube (the latter is easy to soften and crack). At the same time, crankcase vent hose for BMW is resistant to corrosion of engine oil, fuel oil and acidic channeling gas, and does not deform or deteriorate during long-term use, greatly extending product life and reducing maintenance requirements.
2. We have a low permeability structure in the design of crankcase vent hose for BMW, which effectively reduces engine oil vapor emissions. Crankcase vent hose for BMW helps us meet national six emission standards. The crankcase vent hose for BMW we produce, combined with strict sealing technology, can prevent air leakage and gas leakage, and avoid engine jitter or performance degradation.
3. Our crankcase ventilation hose fully complies with the EU REACH/ROHS standard and has no plasticizer volatilization (protecting the air quality in the car). At the same time, our crank vent hose crankcase vent hose reduces environmental pollution through a low-permeability design. This not only supports sustainable development, but also helps customers cope with global environmental regulations.
4. We insist on special mold-opening manufacturing for special cars, so our crankcase ventilation hose perfectly matches the original plug position, and there is no need to heat and soften during installation (elastic memory material ensures fast and easy operation). This simplifies the maintenance process, reduces the risk of installation errors, and improves user friendliness.
Crankcase ventilation hose parameter：
| Parameter item | Technical specifications and performance description |
| Temperature range | -40℃ ~ +200℃ |
| Body material | Fluorine rubber (FKM) or high-performance silicone |
| Corrosion resistance | Resistant to oil/fuel/acid channeling gas corrosion |
| Long-term deformation rate | ≤0.5% (10,000 hours of continuous use) |
| Environmental certification | EU REACH/ROHS standard (zero volatilization of plasticizers) |
| Permeability | ≤0.01g/m²·h |
| Adaptation accuracy | Special car mold opening ±0.2mm tolerance |
| Installation characteristics | Elastic memory material (direct installation without heating) |
| Torque requirements | 9N·m (original plug position) |
FAQ：
Q1: Why can crank vent hose crankcase ventilation hose withstand high temperatures of 200℃? Why can't ordinary tubes do it?
A1: Our crank vent hose crankcase ventilation hose uses aerospace-grade fluorine rubber (FKM) material, and the heat resistance of the molecular structure is 3 times higher than that of natural rubber.
Q2: Does this crankcase ventilation hose really not need to be heated? What problems can be caused by installation errors?
A2: Our crank vent hose elastic memory material remains flexible at -40℃, and it is designed for in-line anti-reverse installation. Incorrect installation can easily trigger the engine fault code P0171 (air leakage), and the error rate of this product is <0.1%.
Q3: How does crank vent hose crank vent hose crankcase ventilation hose's REACH/ROHS certification guarantee the air quality in the car?
A3: The detection limit of plasticizer/heavy metal is <0.01ppm (almost zero volatilization), and it has passed the highest standard of odor testing of OEMs (grade≤3.0) to eliminate "new car odor".
Q4: How to verify the 8-year life span? Is the replacement cost of crank vent hose higher?
A4: Simulate 150,000 kilometers based on SAE J20 accelerated aging standard. Although the unit price is 30% higher, the frequency of maintenance is reduced by 70%.
About us：
Our Sortech company is an innovative company focused on the research and development and manufacturing of high-quality auto parts. We aspire to become a company that can provide excellent products and services to customers around the world. We adhere to the concept of mold-opening manufacturing for special vehicles, so crank vent hose each crank vent hose can be perfectly matched with the original plug. The installation process of our crankcase vent hose is simple and fast, without additional heating treatment. This not only simplifies the maintenance process, reduces the risk of installation errors, but also improves user satisfaction. We always uphold the business philosophy of ”innovation-driven, quality first", constantly pursue technological innovation and quality breakthroughs, and strive to become a leader in the auto parts industry.
A: Our products have passed ISO/TS 16949 quality management system certification, and meet the European CE, Russian GOST and other regional standards. Specific certification can be provided according to customer needs.
A: Yes! Please provide your requirements or refer to our product catalogue on the website. We will send you detailed technical documents (including size, material, vehicle type, etc.).
A: The regular model is available in stock, and the delivery cycle is 3-5 working days; the production cycle of customized products needs to be confirmed according to the order.
A: Please provide the brand, model and year of the vehicle (such as BMW 2020), we will match the corresponding accessories.
A: We provide OEM number comparison service or verify compatibility through third-party tools.
A: The default quotation is the factory price (excluding tax). If you need FOB price, you need to specify the freight forwarder and bear the international freight, we will cooperate with you.
A: The larger the order volume, the higher the discount. For example: -MOQ 100 pieces: unit price $10. -MOQ 500 pieces: unit price $8. Specific step prices can be negotiated after the procurement plan is provided.
A: The quotation is not included in tax (tax number of customer is required for export tax exemption in China). If DDP (tax paid delivery) is required, additional tax confirmation is required.
A: You can send the purchase list by email or submit the order online (official website link), we will confirm within 24 hours.
A: The modification can be made free of charge before production; the cancellation during production will incur the material loss fee (30% of the order amount); the cancellation after delivery is not allowed.
A: The freight shall be borne by your company under FOB price; the cost to the destination port/denominated place shall be borne by us under CIF/DAP price.
A: To be provided: -Commercial invoice (including HS code). -Packing list. -Certificate of origin (FORM A). -Technical documents (e.g. product certification certificates). We can assist in preparing the documents, but the customer is responsible for customs clearance.
A: It can be agreed to take the spot selling price of the Bank of China at the time of signing the contract as the benchmark, or avoid the risk of volatility through forward exchange contracts.
A: 2 years and 60,000 kilometers, electronic components 1 year warranty.
A: Please provide photos, test report and batch number to confirm the quality problem: -Free replacement or repair within the warranty period (24 months); -Negotiate partial compensation for non-quality issues.
A: The return freight shall be borne (except for quality problems), and the return shall be confirmed by our quality inspection.
A: Provide multi-language installation video and graphic manual, complex accessories can arrange engineers for remote guidance.
